Ceramsite Production LineCeramsite Production Line
The processing technology of the Ceramsite from Clay
Clay→Plastification→Homogenization→Opposited Roller Granulation→Kilning→Cooling→Final product

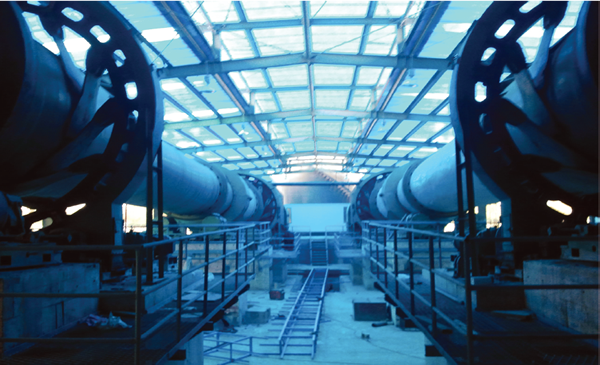

New Dumbbell double cylinder ceramsite kiln
The new technology enlarges the diameter of pre-heating section and improves effect of pre-heating. Adopts new energy-saving heat exchanger to improve heat transfer effect. Adopts fish scale steel seal and have better seal effects. The capacity grows 30%-50%,energy-saving 20%-30% on the original increased.
Main equipments
| No | Specification | Ceramsite capactity | Barrel Speed (r/min) | Motor Power | ||
| Output/h (m3/h) | Output/y (m3/y) | |||||
| 500kg/m3 | 600kg/m3 | |||||
| 1 | Pre-heating kiln ¢1.55/1.9 x 20 | 6-9 | 40000-60000 | 1.0-5.0 | 18.5 | |
| Roasting kiln ¢1.9 x 16 | 1.0-5.0 | 22 | ||||
| 2 | Pre-heating kiln ¢2.0/2.5 x 24 | 10-13 | 70000-90000 | 1.0-3.0 | 30 | |
| Roasting kiln ¢2.5 x 20 | 1.2-3.6 | 37 | ||||
