Asphalt Mixing Plant

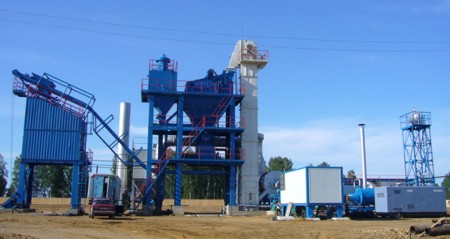

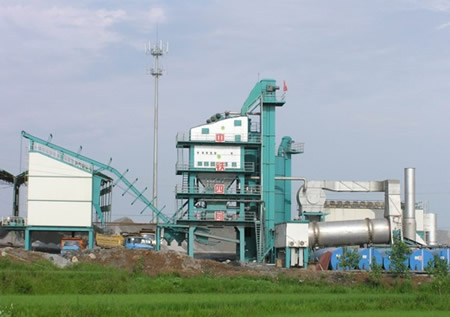

The Forced Batch Asphalt Mixing Plants with a productivity of 40-400 tons/hour is an ideal choice for advanced road construction and maintenance. It's high automatic accurate measuring and high reliability. The raw material can be new material, the mixture of new and recycled material or 100% recycled material, when use 100% recycled material, the capacity can be up to 120T/hour. The mixing plant consists of cold aggregate hopper, feeding belt, drying drum, hot bucket elevator, vibrating screen, hot hopper, measuring system, mixing tank, final product silo, dust collector, thermal transfer oil furnace, bitumen tank, asphalt emulsifier, etc.
Specification
model |
Rated capacity (t/h) |
Power (kw) |
Measure Accuracy(Static)% |
Way of dust collection |
Dust Concentration (mg/Nm3) |
Warehouse Style |
||
Asphal |
Powder |
Aggregate |
||||||
ST500 |
40 |
143 |
± 0.25 |
± 0.5 |
± 0.5 |
Cyclone dust catcher |
≤400/≤100 |
aside |
ST800 |
64 |
185 |
± 0.25 |
± 0.5 |
± 0.5 |
Cyclone dust catcher |
≤400/≤100 |
aside/on bottom |
ST1000 |
80 |
205 |
± 0.20 |
± 0.25 |
± 0.5 |
≤400/≤100 |
||
ST1200 |
96 |
215 |
± 0.25 |
± 0.25 |
± 0.5 |
≤400/≤100 |
||
ST1500 |
120 |
368 |
± 0.25 |
± 0.5 |
± 0.5 |
≤400/≤100 |
||
ST2000 |
160 |
520 |
± 0.25 |
± 0.5 |
± 0.5 |
≤400/≤100 |
||
ST3000 |
240 |
760 |
± 0.20 |
± 0.25 |
± 0.5 |
≤50 |
||
ST4000 |
320 |
1052 |
± 0.20 |
± 0.2 |
± 0.3 |
Bag filter type |
≤25 |
|
ST5000 |
400 |
1037 |
± 0.10 |
± 0.20 |
± 0.3 |
≤25 |
aside |
|
The capacity will fluctuate ±10% because of environment and material parameters.
