Coil Slitting LineCoil Slitting Line

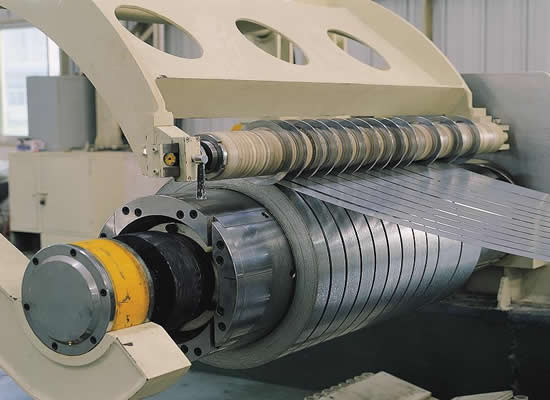

Coil Slitting Line
The coil slitting line do uncoiling,slitting and recoiling works,make steel coil to any wide coil as customer request.The coil slitting line mainly consists of hydraulic uncoiler,hydraulic press,guide and pinch device,hydraulic head cutting device,coil slitting machine,scrap winder,hydraulic damping,pre-dividing and press device,recoiler,hydraulic exit coil car,hydraulic system,pneumatic system,electrical control system etc.Raw material can be hot-rolled,cold–rolled,carbon steel,stainless,galvanized coil.
Specification
| Model | Width(mm) | Thickness(mm) | Line speed(m/min) | Slitting pcs |
| 1.2x1350 | 1350 | 0.3-1.2 | 10-120 | 2-20 |
| 2.0x1600 | 1600 | 0.3-2.0 | 10-120 | 2-20 |
| 3.0x1300 | 1300 | 0.5-3.0 | 10-100 | 2-13 |
| 3.0x1600 | 1600 | 2.0-3.0 | 10-100 | 2-16 |
| 4.5x1250 | 1250 | 0.9-4.5 | 10-70 | 2-15 |
| 7x1600 | 1600 | 1.5-7 | 0-50 | 10-22 |
| 8x1800 | 1800 | 2-8 | 0-40 | 10-30 |
| 10x2000 | 2000 | 3-10 | 0-30 | 10-50 |
