Corrugated Web H Beam Automatic Welding Line

Corrugated Web H Beam Automatic Welding Line

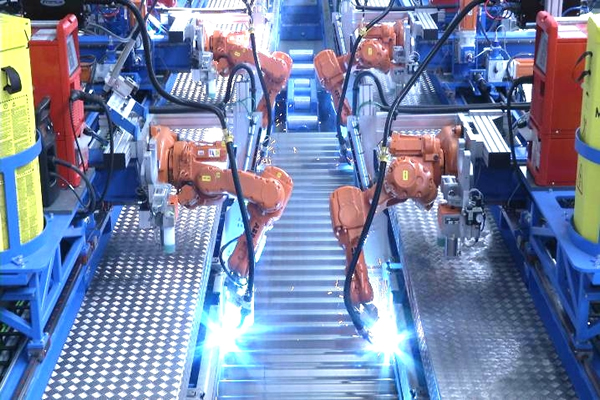

H beam steel production line is a wonderful technical product that integrates merchnical,electric,and pneumatic technologies,the machine,using advanced technology of single arc double wire welding,greatly increases the product efficiency.it consists of welding machine,position fixing machine and conveyor.
After fixing the position for the web and two flanges of h beam welding line,the welding machine can automaticly localize,clamp,adjust,weld,transport until finishing all the work.The automatic mode of this line greatly lowers the cost of manufacture. h beam manufacturing line consists of position fixing machine,two welding machines,75m conveyor.It is applicable in volume-produce of H profile steels.

Technical data:
1.web sheet thickness:3-12m
2.web width:300-1500mm
3.flange sheet thickness:5-20mm
4.flange width:150-500mm
5.span:40m
6.Max piece weight:4T
7.H steel length:4-15m
8.Inclination:less than 15 degree
9.single shift output:10000T/year
